Introduction
Spring clips might seem like simple pieces of metal, but these versatile fasteners play crucial roles across countless industries. From securing automotive components to organizing cables in electronics, spring clips offer reliable, cost-effective solutions for temporary and permanent fastening needs.
This comprehensive guide explores everything you need to know about spring clips their types, applications, benefits, and how to select the right one for your project. Whether you’re an engineer designing a new product or a maintenance professional looking for efficient fastening solutions, understanding spring clips can save you time, money, and headaches down the road.

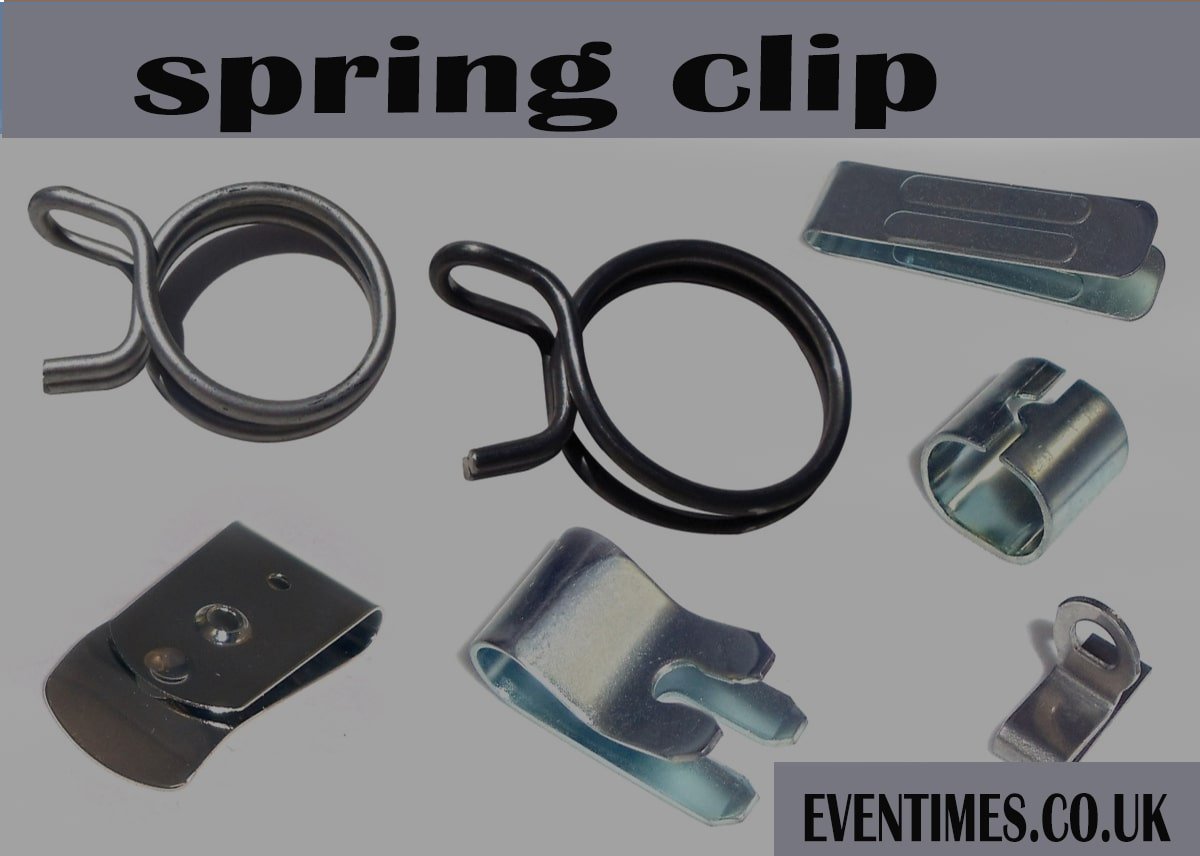

What Are Spring Clips?
Spring clips are mechanical fasteners made from spring steel or other elastic materials that use their inherent flexibility to create holding force. Unlike traditional fasteners that rely on threads, adhesives, or permanent deformation, spring clips work by temporarily deflecting when installed, then returning toward their original shape to maintain constant pressure against the components they secure.
The beauty of spring clips lies in their simplicity. They consist of a single piece of material typically steel that’s been shaped and heat-treated to provide the right balance of flexibility and strength. This design eliminates the need for multiple parts, tools, or complex installation procedures while delivering reliable performance.
Spring clips excel in applications requiring quick installation, easy removal, or accommodation of slight dimensional variations. Their self-energizing design means they maintain consistent holding force even as temperatures change or components experience minor movement.
Types of Spring Clips
The spring clip family includes several distinct designs, each optimized for specific applications and installation methods.
U-Clips
U-clips feature a curved, horseshoe-like shape that slides over edges or fits into grooves. The open design allows for quick installation from one side, making them ideal for applications where access is limited. Common uses include securing panels, trim pieces, and hoses in automotive applications.
J-Clips
J-clips resemble the letter “J” and are designed to hook over flanges or edges. The longer leg provides the spring action, while the shorter leg acts as a stop. These clips work particularly well for hanging applications and securing lightweight components that need occasional adjustment.
V-Clips
V-clips form a “V” shape that can grip round objects like pipes, cables, or rods. The angled design distributes force evenly around curved surfaces, preventing damage while maintaining secure attachment. Electronics manufacturers frequently use V-clips for cable management and component mounting.
Torsion Clips
Torsion clips generate their holding force through twisting action rather than bending. This design provides strong grip with minimal deflection, making them suitable for high-vibration environments where other clip types might work loose.
Push-On Clips
Push-on clips feature barbed or tapered designs that create interference fits when pressed onto shafts, studs, or into holes. Once installed, they resist removal without tools, providing semi-permanent fastening solutions.
Applications Across Industries
Spring clips serve diverse roles across multiple industries, adapting to unique requirements in each sector.
Automotive Industry
The automotive industry relies heavily on spring clips for both manufacturing efficiency and vehicle performance. During assembly, clips secure trim panels, door seals, and interior components, allowing workers to install parts quickly without fumbling with screws or bolts.
Under the hood, spring clips hold fuel lines, vacuum hoses, and electrical harnesses in place while accommodating engine vibration and thermal expansion. The clips’ ability to maintain tension across temperature ranges makes them ideal for these demanding environments.
Electronics and Technology
Electronics manufacturers use spring clips extensively for cable management, component mounting, and electromagnetic shielding. The clips’ non-magnetic properties and corrosion resistance make them suitable for sensitive electronic environments.
In data centers and telecommunications facilities, spring clips organize fiber optic cables, power cords, and cooling lines. Their quick-release capability enables technicians to access equipment rapidly during maintenance procedures.
Construction and Architecture
Construction applications leverage spring clips’ strength and weather resistance for both temporary and permanent installations. Contractors use clips to secure insulation, vapor barriers, and protective coverings during building phases.
In finished structures, spring clips hold architectural elements like ceiling tiles, light fixtures, and decorative panels. The clips remain hidden while providing reliable support that accommodates building movement and settling.
Manufacturing and Industrial
Manufacturing facilities depend on spring clips for machine guards, conveyor components, and production tooling. The clips’ ability to withstand repeated cycles makes them valuable for applications involving frequent assembly and disassembly.
Industrial maintenance teams appreciate spring clips for their field-replaceable nature. When equipment needs service, clips can be removed and reinstalled without specialized tools or lengthy procedures.
Key Advantages of Spring Clips
Spring clips offer several compelling benefits that explain their widespread adoption across industries.
Cost-Effectiveness
Spring clips typically cost significantly less than alternative fastening methods. Their single-piece construction eliminates multiple components, reducing both material costs and inventory complexity. The savings multiply when considering installation time—clips can often be installed in seconds compared to minutes required for threaded fasteners.
Manufacturing efficiency improves when designs incorporate spring clips. Assembly line workers can install clips quickly without stopping to pick up washers, nuts, or tools, leading to reduced labor costs and faster production cycles.
Ease of Installation
Most spring clips require no tools for installation, relying instead on finger pressure or simple hand tools. This accessibility reduces training requirements and enables field repairs without carrying extensive toolkits.
The forgiving nature of spring clips accommodates slight misalignments and dimensional variations that might prevent other fasteners from installing properly. This tolerance reduces reject rates and rework during manufacturing.
Reliability and Durability
Properly selected spring clips can provide decades of reliable service. The spring steel material resists fatigue from repeated loading cycles, while surface treatments protect against corrosion in harsh environments.
Unlike threaded fasteners that can work loose from vibration, spring clips maintain consistent holding force throughout their service life. The absence of stress concentrations from threads or sharp corners contributes to their excellent fatigue resistance.
Versatility
Spring clips adapt to numerous mounting configurations and component shapes. The same basic clip design can secure flat panels, round tubes, or irregularly shaped objects by adjusting the mounting approach or clip orientation.
This versatility reduces the number of different fastener types needed in stock, simplifying procurement and inventory management while providing design flexibility for engineers.
Selection Guide: Choosing the Right Spring Clip
Selecting the optimal spring clip requires careful consideration of several key factors that influence performance and longevity.
Load Requirements
Calculate both the installation force needed to deflect the clip and the holding force required for your application. Spring clips work best when the installation force remains within comfortable hand-operation limits while providing adequate retention strength.
Consider dynamic loads from vibration, thermal cycling, and operational stresses. Clips should maintain their holding force throughout the expected load range without yielding or taking permanent set.
Material Properties
Spring steel offers the best combination of strength, flexibility, and cost for most applications. Stainless steel variants provide superior corrosion resistance for outdoor or chemical environments, while specialized alloys handle extreme temperatures or unique electrical requirements.
Surface treatments like zinc plating, powder coating, or passivation extend service life in corrosive environments. Match the treatment to your specific exposure conditions for optimal performance.
Environmental Conditions
Temperature extremes affect spring properties and can cause clips to lose tension or become brittle. Specify clips with appropriate temperature ratings and consider thermal expansion effects on both the clip and mounted components.
Chemical exposure, humidity, and UV radiation can degrade clip materials over time. Select materials and coatings that resist your specific environmental challenges.
Installation Access
Consider how much space installers will have to work with during assembly. Confined areas may require clips with lower installation forces or alternative designs that install from different angles.
Evaluate whether clips need to be removable for maintenance or if permanent installation is acceptable. Removable clips often require different design features than permanent installations.
Installation Best Practices
Proper installation techniques ensure spring clips deliver their intended performance while avoiding common failure modes.
Preparation Steps
Clean mounting surfaces to remove oils, dirt, or corrosion that might interfere with clip seating. Inspect clips for damage, cracks, or deformation that could affect performance.
Verify that component dimensions match clip specifications. Oversized components can overstress clips, while undersized parts may not provide adequate retention.
Installation Techniques
Install clips gradually rather than forcing them into position with excessive pressure. Gradual deflection reduces stress concentrations and prevents permanent deformation.
Ensure clips seat completely in their designed positions. Partially installed clips may have reduced holding force or could work loose during service.
For multiple clips on the same component, install them in sequence to distribute stresses evenly. This approach prevents distortion that might affect subsequent clip installations.
Quality Verification
Check that installed clips maintain their specified retention force. Simple pull tests can verify that clips engage properly without over-stressing the assembly.
Document installation procedures and torque specifications for maintenance teams. Consistent installation techniques ensure reliable performance across multiple service cycles.
Real-World Case Studies
Automotive Trim Panel Assembly
A major automotive manufacturer reduced assembly time by 40% when switching from screws to spring clips for interior trim panels. The clips eliminated the need for pre-drilled holes and provided better vibration resistance than threaded fasteners.
The design change also improved serviceability—technicians could remove panels for maintenance without risking stripped threads or lost hardware. Customer satisfaction increased due to reduced interior rattles and squeaks.
Electronics Cable Management
A telecommunications equipment manufacturer solved recurring cable management problems by replacing zip ties with spring clips. The clips allowed easier cable routing changes during field installations while providing more secure retention than temporary fasteners.
Service calls decreased by 25% as the clips prevented cables from working loose during shipping and handling. The reusable nature of the clips also reduced waste and replacement costs.
Industrial Equipment Guards
A food processing equipment manufacturer improved safety compliance by using spring clips to secure machine guards. The clips enabled rapid access for cleaning while ensuring guards remained properly positioned during operation.
The quick-release capability reduced downtime during daily sanitization procedures, improving overall equipment effectiveness. Maintenance teams reported faster response times for both routine service and emergency repairs.
Frequently Asked Questions
How do I determine the right spring clip size for my application?
Measure the thickness of the material or diameter of the object you need to secure. Spring clips work best when deflected 10-30% of their free length. Consult manufacturer specifications for recommended deflection ranges and corresponding holding forces.
Can spring clips be reused after removal?
Most spring clips can be reused multiple times if removed carefully without exceeding their elastic limit. Inspect clips for cracks, permanent deformation, or reduced spring tension before reinstalling. Replace clips showing any signs of damage or fatigue.
What’s the difference between spring clips and snap rings?
Spring clips are external fasteners that grip around or onto components, while snap rings fit into grooves machined specifically for that purpose. Spring clips offer more installation flexibility but generally provide lower holding forces than properly fitted snap rings.
How do temperature changes affect spring clip performance?
Spring clips lose tension as temperatures increase and become stiffer at low temperatures. Standard spring steel clips work well between -40°F and 400°F. For extreme temperatures, specify clips made from specialized alloys designed for those conditions.
Are there any safety considerations when using spring clips?
Always wear safety glasses when installing or removing spring clips, as they can release stored energy suddenly if they slip during handling. Use appropriate tools rather than fingers when dealing with high-force clips, and never exceed the manufacturer’s recommended deflection limits.
The Essential Role of Spring Clips in Modern Design
Spring clips represent one of engineering’s most elegant solutions—simple, reliable, and remarkably versatile. Their ability to provide consistent holding force while accommodating installation variations makes them invaluable across industries ranging from automotive manufacturing to electronics assembly.
As products become more complex and manufacturing demands increase, spring clips offer designers a way to simplify assembly processes while maintaining reliability. Their cost-effectiveness and reusability align with sustainability goals, while their tool-free installation reduces training requirements and improves productivity.
The key to successful spring clip implementation lies in understanding your specific requirements and selecting clips that match your load, environmental, and installation needs. With proper selection and installation, spring clips can provide decades of reliable service while reducing costs and improving maintainability.
Whether you’re designing your first product or optimizing an existing assembly process, consider how spring clips might simplify your fastening challenges. Their proven track record and continuing innovation ensure they’ll remain essential components in tomorrow’s engineering solutions.
