Valve springs might seem like simple components, but they play a critical role in engine performance. These small yet mighty parts control valve timing and seating, directly affecting power output, fuel efficiency, and engine longevity. When valve springs fail or weaken, the consequences can be catastrophic from poor performance to complete engine failure.
A valve spring tester is an essential tool that helps mechanics, engine builders, and racing enthusiasts ensure their valve springs meet specifications. By measuring spring pressure at various compression points, these devices provide crucial data for maintaining optimal engine performance.
This comprehensive guide will walk you through everything you need to know about valve spring testers, from understanding their importance to selecting the right model for your needs.
Contents
What is a Valve Spring Tester?

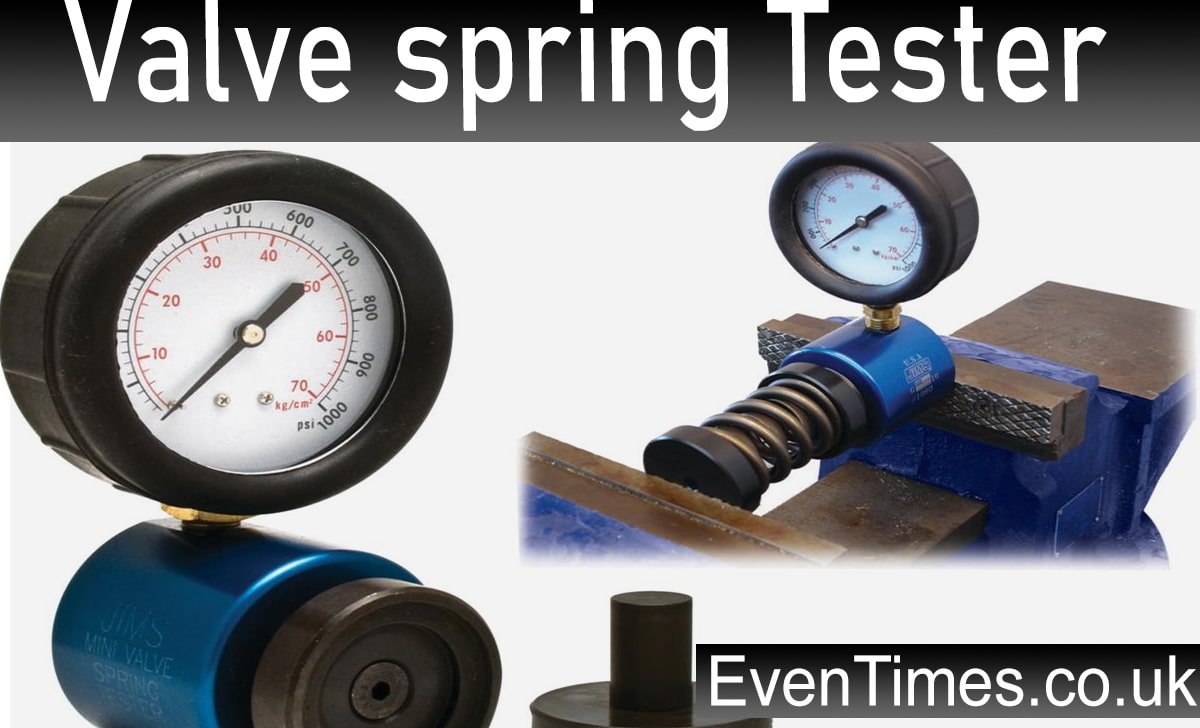

A valve spring tester is a precision measuring instrument designed to evaluate the compression force of valve springs at specific heights. The device compresses a spring to predetermined measurements while displaying the corresponding force readings, typically measured in pounds or kilograms.
The tester consists of several key components: a sturdy base or frame, a compression mechanism (usually a screw-type actuator), pressure plates to hold the spring, and a force measurement system—either a mechanical gauge or digital display. Many models include height measurement capabilities to ensure accurate testing at specified compression points.
These tools range from simple mechanical units suitable for basic shop use to sophisticated digital models with data logging capabilities for professional racing applications. Regardless of complexity, all valve spring testers serve the same fundamental purpose: verifying that springs produce the correct force at specific installed and open heights.
Importance of Valve Spring Testing
Valve spring testing serves multiple critical functions in engine maintenance and performance optimization. Springs naturally weaken over time due to metal fatigue, heat cycles, and constant compression. Without proper testing, weakened springs can cause valve float at high RPMs, leading to poor performance or engine damage.
Testing becomes even more crucial when building high-performance engines. Racing applications demand precise spring rates to match camshaft profiles and intended RPM ranges. A spring that’s too weak allows valve float, while an overly stiff spring creates unnecessary friction and reduces power.
Regular testing also helps identify manufacturing inconsistencies. Even new springs from the same set can vary significantly in their force characteristics. By testing each spring individually, you can match springs with similar characteristics for optimal performance and longevity.
For professional engine builders and racing teams, documented spring testing provides valuable data for setup optimization and failure analysis. This information helps track component degradation over time and establish replacement schedules.
Types of Valve Spring Testers
Valve spring testers fall into three main categories, each suited for different applications and budgets.
Mechanical Testers
Mechanical testers use analog gauges to display spring force readings. These units typically feature a dial indicator or pointer-style gauge connected to the compression mechanism through a series of levers or hydraulic systems. While less precise than digital alternatives, mechanical testers offer reliability and don’t require power sources.
Digital Testers
Digital valve spring testers provide enhanced accuracy and often include additional features like data storage, multiple measurement units, and peak force detection. Many digital models can store readings for later analysis or comparison, making them ideal for professional applications where documentation is important.
Portable vs. Bench-Mounted Units
Portable testers offer convenience for field use or smaller shops with limited bench space. These compact units sacrifice some stability and maximum capacity for portability. Bench-mounted testers provide superior stability and typically handle a wider range of spring sizes and forces, making them preferred for high-volume testing or precision applications.
Key Features to Look For
When selecting a valve spring tester, several features can significantly impact usability and accuracy.
Measurement Range and Accuracy
Ensure the tester can handle your expected force ranges with appropriate accuracy. Most automotive applications require testing up to 300-400 pounds of force, while heavy-duty or racing applications may need higher capacities. Look for accuracy specifications of ±1% or better for professional applications.
Height Measurement Capabilities
The ability to measure spring height during compression is essential for proper testing. Some testers include built-in height measurement systems, while others require separate measuring tools. Integrated height measurement ensures more consistent and accurate results.
Build Quality and Durability
A valve spring tester experiences significant forces during operation, making robust construction essential. Look for units with heavy-duty frames, precision-machined components, and quality measurement systems. Poor construction leads to inaccurate readings and shortened tool life.
Ease of Use and Setup
Consider features that streamline the testing process, such as quick-release mechanisms for spring installation, clear measurement displays, and intuitive controls. Features like automatic zero-setting and peak force detection can significantly improve testing efficiency.
How to Use a Valve Spring Tester
Proper testing technique ensures accurate, repeatable results. Begin by calibrating the tester according to the manufacturer’s instructions, ensuring both force and height measurements are zeroed correctly.
Install the valve spring between the tester’s compression plates, ensuring it sits squarely and centered. Gradually compress the spring to the specified installed height—typically the height when the valve is closed in the engine. Record the force reading at this point.
Next, compress the spring to the open height specification, which represents maximum valve lift. Record this force reading as well. Some applications require testing at additional intermediate heights for complete spring characterization.
Compare your measurements against the spring manufacturer’s specifications or engine builder’s requirements. Springs that fall outside acceptable tolerances should be replaced or sorted for different applications.
Always test springs individually, as force characteristics can vary significantly even within the same set. Keep detailed records of your measurements for future reference and trend analysis.
Maintenance and Calibration Tips
Regular maintenance keeps your valve spring tester accurate and reliable. Clean the compression plates and moving components regularly to prevent contamination from affecting measurements. Lubricate moving parts according to manufacturer recommendations, using appropriate lubricants that won’t attract dirt.
Calibration verification should be performed regularly using known weights or certified test springs. Many professional shops calibrate their testers monthly or after a predetermined number of tests. If your tester shows drift from known standards, professional recalibration may be necessary.
Store the tester in a clean, dry environment to prevent corrosion and contamination. Protect measurement displays and controls from damage, and cover the unit when not in use.
Top Valve Spring Tester Brands
Several manufacturers produce quality valve spring testing equipment, each with distinct advantages.
Professional-grade manufacturers focus on accuracy, durability, and advanced features suitable for racing and high-volume applications. These units typically command premium prices but offer superior performance and longevity.
Mid-range manufacturers provide good balance between features and cost, making their products suitable for serious enthusiasts and smaller professional shops. These testers often include digital displays and basic data storage capabilities.
Budget-oriented brands offer basic functionality at affordable prices, making valve spring testing accessible to hobbyists and occasional users. While lacking advanced features, these units can provide adequate accuracy for basic applications.
Troubleshooting Common Issues
Several common problems can affect valve spring tester accuracy and operation.
Inconsistent readings often result from contaminated or worn compression surfaces. Clean all contact points thoroughly and inspect for wear or damage. Binding in the compression mechanism can also cause erratic readings—check for proper lubrication and component alignment.
Force readings that drift during testing may indicate worn measurement components or calibration issues. Verify calibration using known standards and service the unit if problems persist.
Difficulty compressing springs might result from inadequate tester capacity, binding components, or damaged compression mechanisms. Ensure your tester is rated for the springs being tested and inspect all moving parts for damage.
Investing in Quality Testing Equipment
A quality valve spring tester represents a significant investment that pays dividends through improved engine reliability and performance. Cheap testers often provide inconsistent results that can lead to incorrect component selection and potential engine damage.
Consider your testing volume and accuracy requirements when selecting a tester. Occasional hobbyist use might justify a basic mechanical unit, while professional applications demand the accuracy and features of premium digital testers.
Factor in long-term costs including calibration, maintenance, and potential replacement. A quality tester properly maintained can provide decades of reliable service, while cheap alternatives may require frequent replacement.
Maximize Your Engine’s Potential
Valve spring testing is an essential skill for anyone serious about engine performance and reliability. Whether you’re building race engines or maintaining street vehicles, understanding spring characteristics helps ensure optimal valve train operation.
The investment in a quality valve spring tester quickly pays for itself through improved engine longevity and performance. By following proper testing procedures and maintaining your equipment, you’ll have the tools necessary to build reliable, high-performing engines.
Start by evaluating your specific needs and selecting a tester that matches your applications and budget. With the right equipment and knowledge, you’ll be able to optimize valve train performance and avoid costly engine problems.
